A/C Refrigerant Recovery&Charging Machine

The Automatic A/C Refrigerant Recovery and Charging Machine is becoming increasingly popular nowadays. Nobody wants to be caught off guard in the summer with an air conditioning system that doesn’t keep you cool or smells unpleasant. Therefore, please run your AC a few times throughout the winter to ensure it’s working correctly and hold all relevant parts in operational readiness.
This page provides more information about A/C Refrigerant Recovery & Charging Machines and AC system Flushing and Cleaning equipment, which handle the flushing, cleaning, recovery, recycling, and recharging of refrigerants.
Always wear eye protection when servicing air conditioning systems. Refrigerants and AC systems are under pressure. Accidental and/or sustained release of any refrigerant can cause personal injury or harm. It is entirely the user’s responsibility to take all necessary precautions.

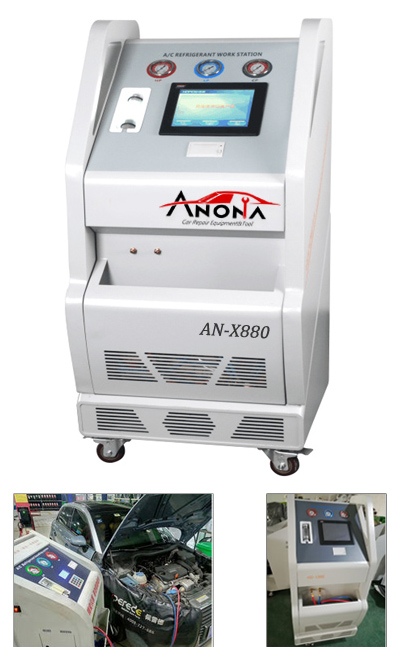

A/C System Flushing&Cleaning machine

(Completely Automatic)

Model No.: AN-X880

Automatic A/C Refrigerant Recovery&Charging Machine

Functions:

flushing, cleaning, recovery, recycling
vacuum, refill, recharge.

Parameter

Power Supply: AC 220v±10%, 50/60HZ

Compressor: 3/8 HP, SC15G, DANFOSS brand

Recovery Cylinder: 13.6KG

Load cell accuracy for gas cylinder:±5g

Vacuum pump: double stage 2.5L pump

Recovery rate: 97%, stops at Zero bar automatically

Vapor refrigerant recovery speed: 350g/min

Liquid Refrigerant recovery speed: 250g/min

Charge speed: 1500g/min

Vacuum speed: 7200L/Hour

Cycle-cleaning time: 20-40 minutes

Dry filter: 600ml

New/old oil bottle capacity: 220ml

Max work pressure: 17.5 bar

A condenser and cooling fan are included.

Hoses: 200cm

Plywood package: 1470x850x725cm

Features for AN-L800

This A/C System Flushing and Cleaning machine is equipped with a database search and print function, as well as a high-duty vacuum pump.

The high-precision electronic scale weighs the refrigerant filling and reclaiming.

Recycle-cleaning makes flushing of pipelines, evaporators, and condensers fast and easy.

It is an advanced A/C hose service equipment featuring a unique on-car AC hose recycling and cleaning function. No need for any chemicals, only use refrigerant to change the wasted oil in the system and clean the whole AC system.

Sight glass— to observe flow rates and the cleaning process.

More Features Compared with AN-X800

This machine has a 10-inch color command center with a touch screen.

It operates very efficiently.

Model No.: AN-X800

Automatic A/C Refrigerant Recovery&Charging Machine

AC SYSTEM flushing and cleaning equipment

Parameter

Power Supply: AC 220v±10%, 50/60HZ

Recovery rate: 97%, stops at Zero bar automatically

Vapor refrigerant recovery speed: 350g/min

Liquid Refrigerant recovery speed: 250g/min

Compressor: SC15G, DANFOSS Brand

Charge speed: 1500g/min

Vacuum Speed: 7200L/Hour

Vacuum pump: double stage 2L pump

Dry filter: 600ml

Cylinder Capacity: 13.6kg

Load cell accuracy for gas cylinder: ±5g

New/old oil bottle capacity: 250ml

Max work pressure: 17.5 bar

Hose Length: 2M

The condenser and cooling fan are included

Machine Size(mm):88x76x144cm=0.963cbm

Cross Weight:130kg

Model No.: AN-X520

More Features Compared with AN-X800

This machine is with a 7” color command center with a touch screen.

Parameter

Power Supply: AC 220v±10%, 50/60HZ

Recovery rate: 97%, stops at Zero bar automatically

Oil Injection: automatic

Vapor refrigerant recovery speed: 350g/min

Liquid Refrigerant recovery speed: 250g/min

Compressor: SC12G, DANFOSS Brand

Charge speed: 1500g/min

Vacuum Speed: 7200L/Hour

Cycle-cleaning time: 20-40 minutes

Vacuum pump: double stage 2L pump

Dry filter: 600ml

Cylinder Capacity: 13.6kg

Load cell accuracy for gas cylinder: ±5g

New/old oil bottle capacity: 250ml

Max work pressure: 17.5 bar

Hose Length: 2M

The condenser and cooling fan are included

Machine Size(mm):71x67x132cm=0.630cbm

A/C Refrigerant Recovery and Charging Machine

(Completely Automatic)

Model No.: AN-S600

A/C REFRIGERANT RECOVERY&CHARGING MACHINES

Main Function and Features

Recovery/Recycling (drain used oil)
Vacuum
Refill the new oil
Recharge
Automatic or Manual-Service for choice
With a data printed report.
With an LCD touch screen.
Hose coupler Storage
Automatic oil injection.
The SC12G Danfoss compressor is designed to achieve excellent efficiency.
It complies with a two-stage high-performance vacuum pump. Through a dual-stage vacuum pump(100-140liter/min), a large 4mm orifice solenoid valve, and a 3/8” vacuum hose. Silencing blocks on the vacuum pump keeps the running noise down.
Plywood Package: 71x67x132cm=0.630CBM

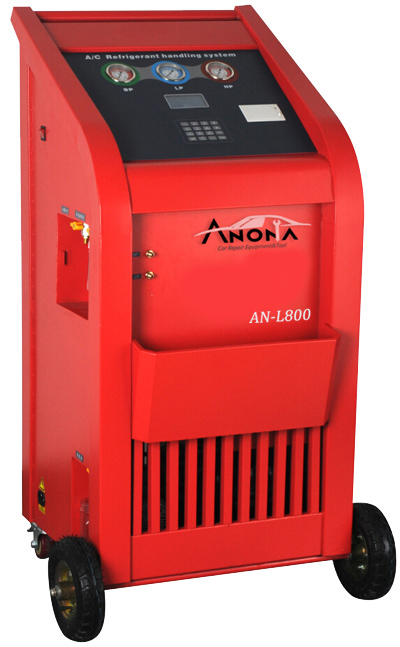

Model No.: AN-L800

A/C Refrigerant Recovery&Charging Machine

Main Function and Features

Recovery/Recycling (drain used oil)
Vacuum
Refill new oil
Recharge
With a data printed report
Condenser and cooling fan included
The SC15G Danfoss compressor is designed to achieve excellent efficiency.
It has a simple pipeline connection. The operation starts once the hose of the machine is connected to the interface of the air conditioner yet to be tested.
Compact construction and parts versatility help with repair and maintenance.
Plywood Package: 88x76x144cm=0.963CBM

A/C Refrigerant Recovery and Charging Machine

(Semi Automatic)

Model No.: AN-L520

Main Function and Features

Recovery/Recycling (drain used oil)
Vacuum
Refill the new oil
Recharge
Drain used oil automatically.
It features a compact design and meets the SAE standard.
This machine is primarily used in automobile service stations and on automobile production lines.
It is easy to connect the quick connectors for high- and low-pressure refrigerant to the automobile air conditioner system.

A/C Refrigerant Recovery and Charging Machine

(Semi Automatic)

Model No.: AN-L500

Main Function

Recovery/Recycling (drain used oil)
Vacuum
Refill the new oil
Recharge
Semi-automatic mode
The LCD offers operation and service prompts.
The high-precision electronic scale weighs the refrigerant filling and reclaiming.
It adopts a unique automatic protection design to prevent liquid attachment and ultra-high-pressure explosions.

A/C Refrigerant Recovery and Charging Machine

(Manual Mode)

Model No.: AN-l180A

Manual A/C Refrigerant Recovery&Charging Machine

Main Function

Recover refrigerant automatically, ensuring it meets the SAE standard.
Charge refrigerant into the perfectly sealed air conditioning system. Manual operation to purge the wasted compressed oil and recharge the new oil
Vacuum: Draw air out of the conditioner.
Recharge
Equipped with a filter device to eliminate moisture and impurities.
Separate the compressor oil from the refrigerant and charge the system with new oil.

Parameter

Power Supply: AC 220v±10%, 50/60HZ

Application refrigerant: R134a

Cylinder capacity: 10kgs

Recovery Speed: 280g/min

Charge speed: 800g/min

Vacuum speed:3600 Liter/Hour

Vacuum pump: 1 L

Dry filter: 250ml

Scale accuracy:±10g

Environmental temperature: -10℃-50℃

Net Weight: 65kg

Carton Package: 68x63x117cm=0.500CBM

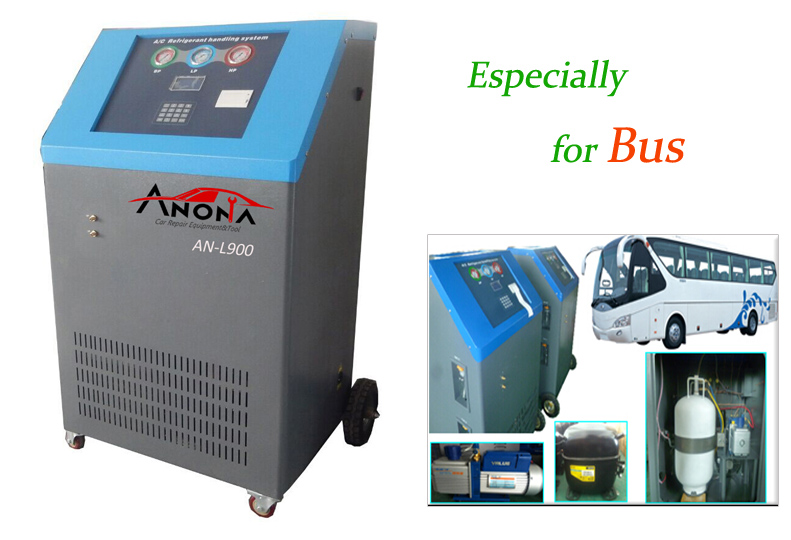

BUS A/C Refrigerant Recovery and Charging Machine

(Automatic Mode)

Model No.: AN-L900

This A/C Refrigerant Recovery and Charging Machine is specially designed for heavy-duty vehicles, such as Bus, Truck, Train).

Main Function

Recovery/Recycling (drain used oil)
Vacuum
Refill new oil
Recharge
Completely automatic mode

BUS A/C Refrigerant Recovery&Charging Machine

Parameter

Power Supply: AC 220v±10%, 50/60HZ

Compressor: SC21G, DANFOSS brand

Recovery rate: 97%, stops at Zero bar automatically

Vapor refrigerant recovery speed: 350g/min

Liquid Refrigerant recovery speed: 250g/min

Charge speed: 1500g/min

Vacuum Speed: 1000g/min

Vacuum pump efficiency: 14400L/Hour

Dry filter: 600ml

The Max. refrigerant weight in gas cylinder: 22.7kg

Load cell accuracy for gas cylinder: ±5g

New/old oil bottle capacity: 300ml

Max work pressure: 20 bar

A Condenser and cooling fan included

Plywood package: 104x75x150cm=1.170cbm

Gross weight: 150kg

FAQ :

Q: Which kind of Refrigerant can be used?

A: You can use R-134a refrigerant. If you wish to use R12, R401, or other types of Refrigerant, please inform us, and we will modify specific components to meet your request.

Q: Are there any consumable items that can be resold?

A: Yes. Refrigerant oil, Refrigerant, and Dry filter could be resold.

Q: Are there any components that need to be changed after long-term use?

A: Yes, you are expected to change the Dry filter after recovering 60 – 80 cars.

Q: How to maintain?

A: Keep clean, do not pour water on it, as water may damage the mainboard and other electronic components.

Q: How much exactly should be recovered from the car?

A: It depends on your car model. Generally, the recovery is 1100g of car. The machine will automatically stop when recovery is complete if there is no refrigerant.

Q: Do you have an AC workstation machine for heavy-duty?

A: Yes, we have. Model AN-L900 is for trucks, buses, and lorries. Please get in touch with me, and we can send you more details about this machine.

Q: Do you have a car spray booth to sell?

A: Yes, the Yokistar spray booth is the best one in China. Please visit the link for reference.

These A/C Refrigerant Recovery&Charging Machines are highly effective for running a service site for car body shops.

The car body shops owners can contact ANONA for further details and information. For any queries kindly contact us at:

Phone/What’s App/WeChat：0086-13600093075
Email: anona@anonaauto.com
