Car Scissor Lift

If you are looking for a car scissor lift with a low profile(no pit required) but at an affordable price, our ANSS-3.5TCB small scissor lift will be your best choice.
Of course, if your site has no problem with digging pits, you can choose other models at a cheaper cost.
Anona Car Scissor Lift permits more effortless movement in your garage or workshop, but ensures your regular work.

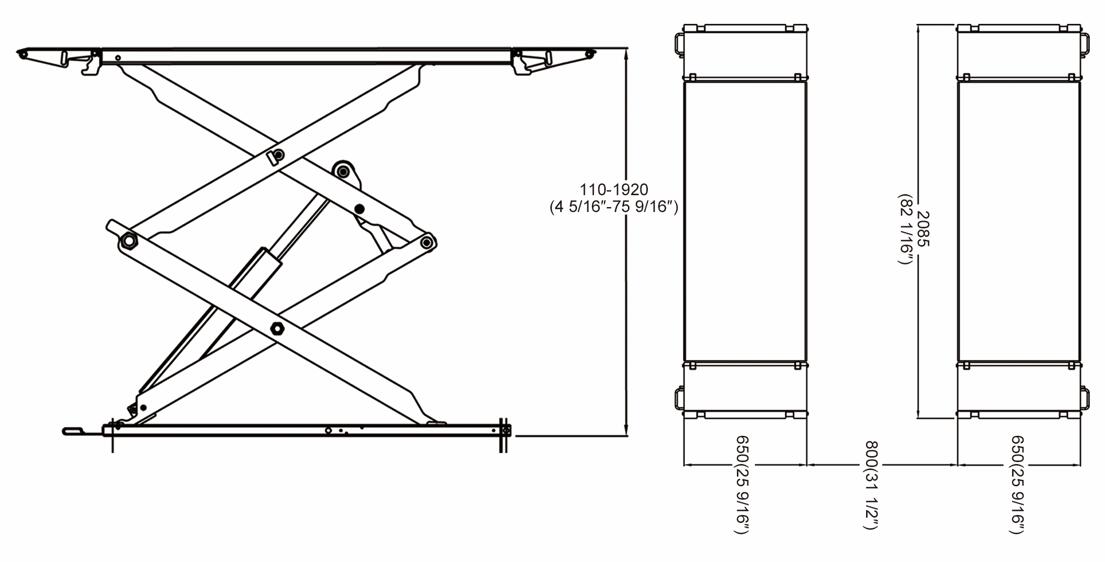

Low Profile Scissor Lift(Model No.:AN-3T CB)

No pits required

This ANNS-3TCB low-profile scissor lift has a low height of 115mm, so no pit is required, and the installation cost is reduced. It is an easy-loading style scissor lift, double scissor design with four synchronized cylinders and a full 1700mm lifting height. The lifting capacity is 3000kg, so that meets most cars’ requirements. This scissor lift has an automatic pneumatic safety lock system and 24V DC safety voltage.

AN-3T CB scissor lift
No Pits Required

Parameters

  • Model No.:
  • Type
  • Lifting Capacity
  • Min. Height
  • Max. Lifting Height
  • Lifting Speed
  • Platform Length
  • Platform Width
  • Width between Platforms
  • Motor Power
  • Voltage and Phase
  • AN-3T CB
  • Up Ground
  • 3000kg
  • 110mm
  • 1920mm
  • 50 seconds
  • 1465—2085 mm
  • 650mm
  • 800mm
  • 2.2KW (220V)
  • 220V 1 Phase 50HZ
    380V 3 Phase 50HZ

In-Ground Scissor Lift(Model No.:AN-3.5T DC)

This AN-3.5T DC in-ground double scissor lift has an electric and hydraulic power control console, and consists of three simple button push controls, including raise, lower, and lock release. The recessed and flush-mounted scissor lift allows technicians to work at a comfortable height to increase productivity and minimize fatigue. Four synchronized cylinders provide a 4000kg lifting capacity.

If you think this car scissor lift is not suitable for you, please view our two-post lifts for more choices.

AN-3.5T DC scissor lift

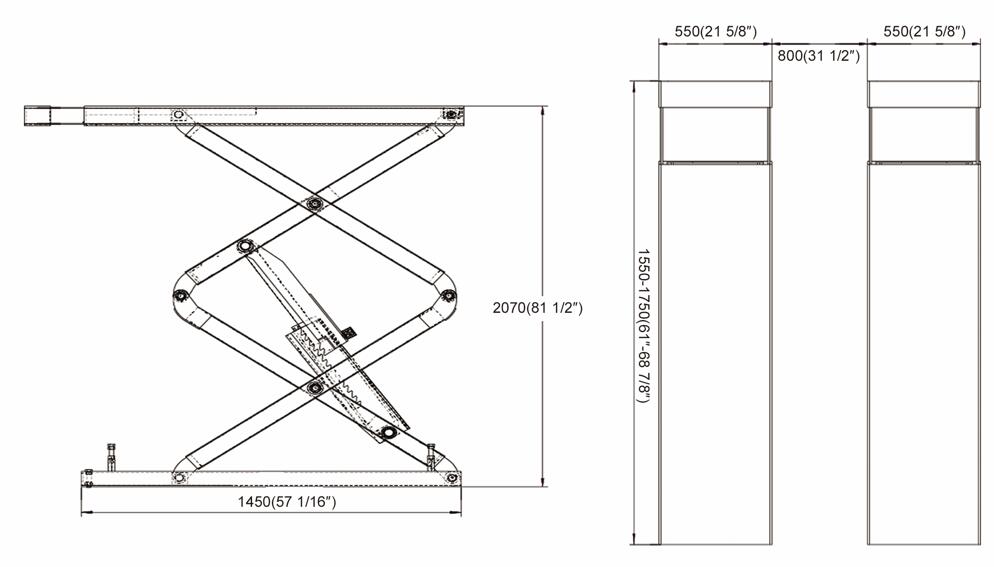

lift size

Parameters

  • Model No.:
  • Type
  • Lifting Capacity
  • Min. Height
  • Overall Lifting Height
  • Lifting Speed
  • Platform Length
  • Extended Platform Length
  • Width between Platforms
  • Motor Power
  • Voltage and Phase
  • AN-3.5T DC
  • In-Ground
  • 3500kg
  • 330mm
  • 2070mm
  • 50 seconds
  • 1550-1750mm
  • 200mm
  • 800mm
  • 2.2KW
  • 220V 1 Phase 50HZ
    380V 3 Phase 50HZ

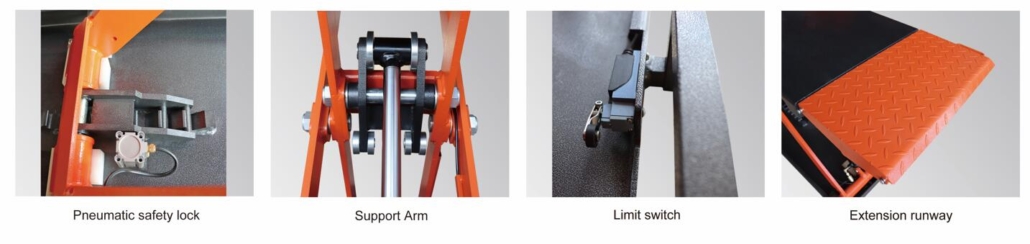

SPARE PARTS OF SCISSOR LIFT

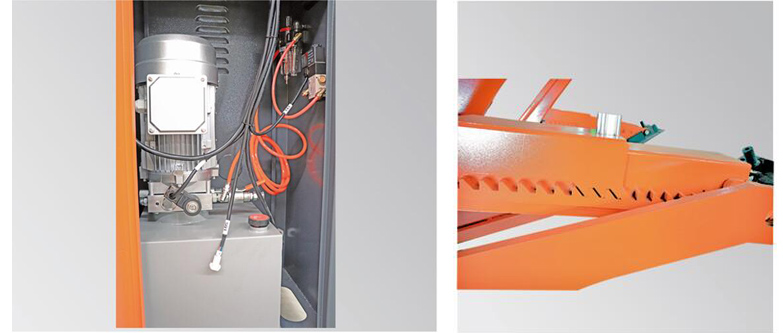

Aluminum Motor          Mechanical Lock and Pneumatic Unlock System

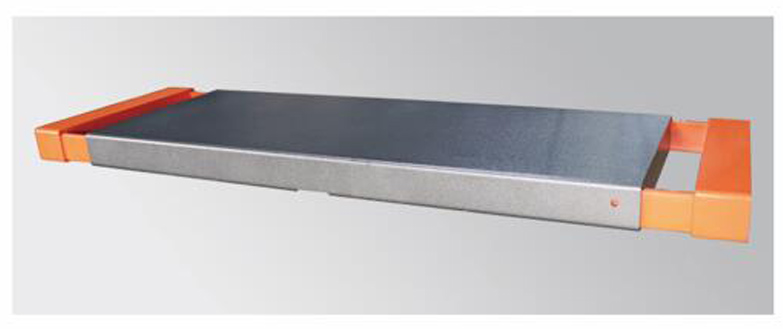

both ends extension

Both Ends Extension

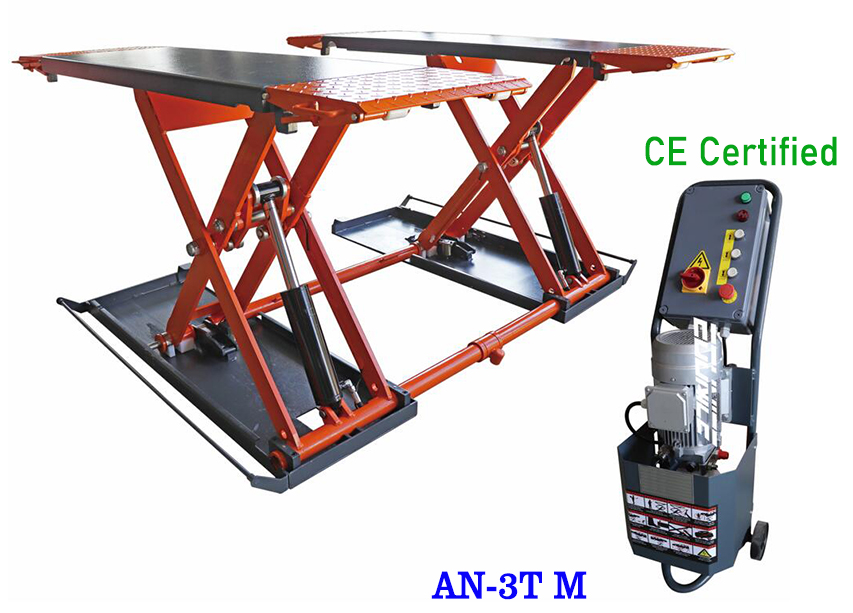

Moveable Scissor Lift (Model No.:AN-3T M)

This AN-3T M moveable double scissor lift has durable cylinders with anti-surge valves and consists of pneumatic safety lock release. It is with a self-lubricated bushing and bearing system. The height limit switch ensures its safety and reliability.

This movable scissor lift can not be used for wheel alignment. If you require the lift for wheel alignment, please view our wheel alignment lifts.

Parameters

  • Model No.:
  • Type
  • Lifting Capacity
  • Min. Height
  • Max. Lifting Height
  • Lifting Speed
  • Platform Length
  • Width between Platforms
  • Motor Power
  • Voltage and Phase
  • AN-3T M
  • Moveable
  • 3000kg
  • 1100mm
  • 1000mm
  • 40 seconds
  • 2015mm
  • 810mm
  • 2.2KW (220V)
  • 220V 1 Phase 50HZ /
    380V 3 Phase 50HZ

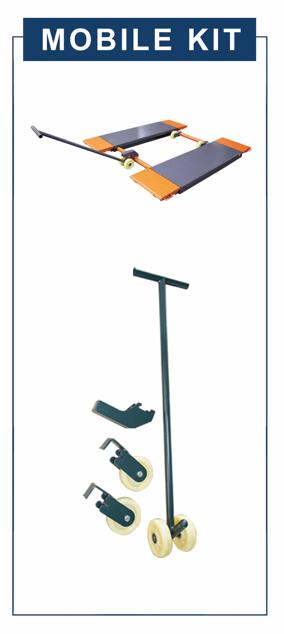

Mobile Kit

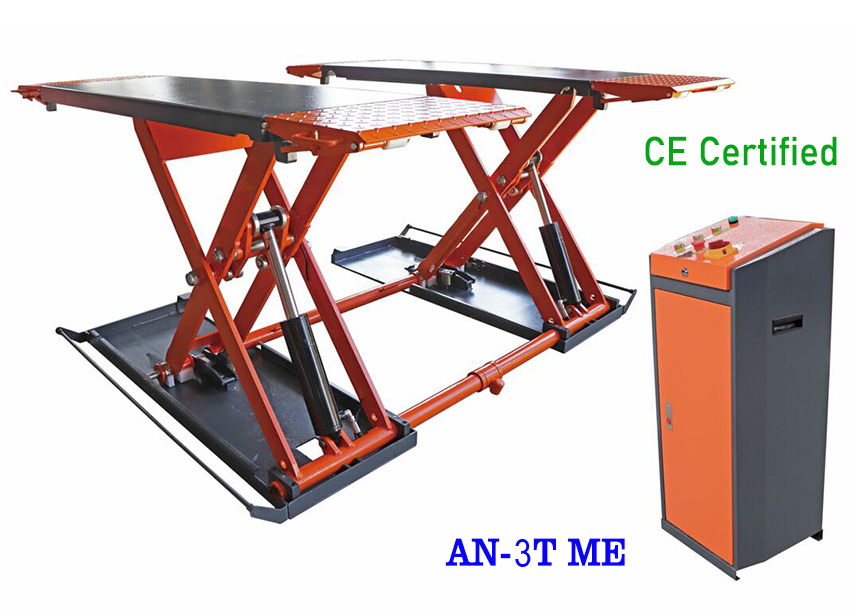

Movable Scissor Lift(Model No.:AN-3T ME)

This AN-3T ME moveable scissor lift is locked and released by electricity.

AN-3T ME moveable lift
spare parts of lift
Note

4T moveable lift with pneumatic lock release is available.

Parameters

  • Model No.:
  • Type
  • Lifting Capacity
  • Min. Height
  • Max. Lifting Height
  • Lifting Speed
  • Platform Length
  • Width between Platforms
  • Motor Power
  • Voltage and Phase
  • AN -4T ME
  • Movable
  • 3000kg
  • 120 mm
  • 1100 mm
  • 40 seconds
  • 2015 mm
  • 810 mm
  • 2.2KW (220V
  • 220V 1 Phase 50HZ/
    380V 3 Phase 50HZ
